Product Description
Top 300 GPD RO Membrane Manufacture
Reverse Osmosis - membrane 300GPD with advanced membrane technology and automated production allow these elements to provide consistent performance, for dealers and end customers to rely on.

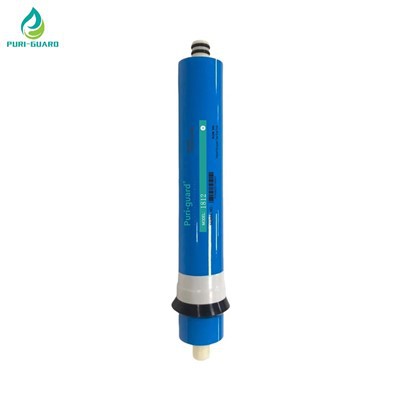

Reverse Osmosis Membrane – Puri-guard® 300 GPD RO membrane (1200 l / day)
Key features
- High efficiency in removing salts, heavy metals, and other dissolved solids
- Produces clean, safe drinking water
- Compact and easy to install for small systems
- Low maintenance with long service life (typically 2–3 years)
- Stable performance in a range of water conditions
Typical Applications
- Household RO systems
- Small offices, cafes, or restaurants
- Laboratory or medical purified water
- Small industrial applications (low to moderate TDS water)
Refer to 300GPD RO membrane questions
Hot Tags: 300 gpd ro membrane, China 300 gpd ro membrane manufacturers, suppliers, factory, 100 GPD RO, 300 GPD RO Membrane, 3012 RO Membrane, 500 GPD Membrane, B RO Membrane, RO 1812 75
|
Puri-guard® Element |
Active Area |
Permeate Flow GPD (m3/d) |
Testing Pressure |
Salt Rejection (%) |
|
|
ft2 (m2) |
psi/MPa |
||||
|
3012-300 |
15.4(1.43) |
300 (1.14) |
90 (0.62) |
97.5 |
|
1. Permeate flow and salt (NaCl) rejection based on the following standard test conditions. 250 ppm softened tap water, 77°F (25°C), pH 7.5, 15% recovery and the specified applied pressure.
2. Minimum salt rejection: 97%.
3. Single membrane element production flow may vary ±20%.
Operating limit
|
Diaphragm type |
Polyamide Composite Membrane |
|
Maximum operating temperature |
113℉ (45℃) |
|
Maximum operating pressure |
150 psi (10 bar) |
|
pH range, continuous operation |
3-10 a |
|
Maximum Influent SDI |
5 |
|
Free chlorine tolerance |
<0.1 ppm b |
a. When pH > 10, the maximum allowable temperature for continuous operation is 95℉ (35℃).
b. Under certain conditions, the presence of free chlorine and other oxidants will lead to premature failure of membranes. Therefore, it is recommended that the membrane be pretreated to remove residual free chlorine before water comes into contact with membranes.
|
Puri-guard® Element |
A (±2.0mm) |
B (±1.0mm) |
C1 (±1.0mm) |
C2 (±1.0mm) |
D (±0.1mm) |
|
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
|
|
3012-300 |
298 |
76 |
22 |
12 |
17 |
